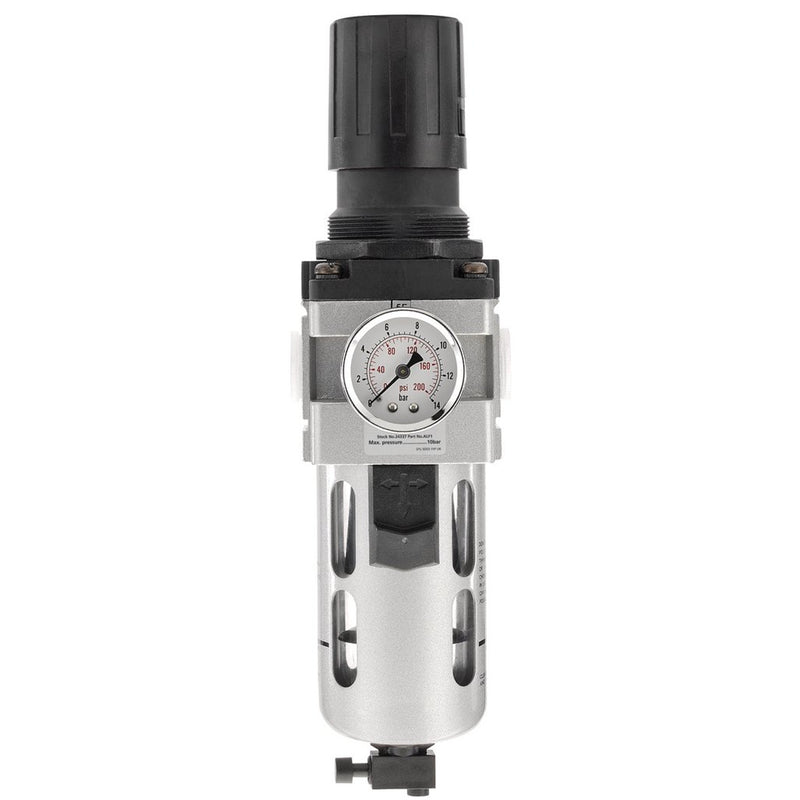

Draper 1/2" BSP Combined Filter/Regulator Unit - 24338
The Draper 24338 Expert 1/2" BSP Combined Filter/Regulator Unit is a high-quality air preparation tool designed to enhance the performance and longevity of pneumatic systems. By effectively removing moisture and particulates from compressed air, it ensures optimal operation of air tools and equipment.
Features & Benefits
-
Efficient Air Filtration: Equipped with a 40-micron filter to eliminate moisture and particulates from the airflow, safeguarding downstream equipment.
-
Durable Construction: Features a polycarbonate screw-on transparent bowl for easy visual inspection, housed within a robust aluminium casing for enhanced durability.
-
Manual/Semi-Automatic Drain: Offers flexibility in maintenance with a manual or semi-automatic drain system to remove accumulated contaminants.
-
Pressure Regulation: Incorporates a dual-marked gauge displaying both bar and psi, allowing precise control of output pressure up to a maximum inlet pressure of 10 bar (145 psi).
Specifications
-
Model: 24338 (ALFR2)
-
Thread Size: 1/2" BSP
-
Filter Rating: 40 microns
-
Maximum Inlet Pressure: 10 bar / 145 psi
-
Material: Polycarbonate bowl with aluminium housing
-
Weight: Approximately 1.445 kg
-
Included Accessories: Wall mounting bracket and display carton
The Draper 24338 Expert Combined Filter/Regulator Unit is an essential component for any pneumatic system, offering reliable filtration and pressure regulation to ensure efficient and safe operation of air tools.
*Product images are for illustrative purposes and may differ from the actual product.
