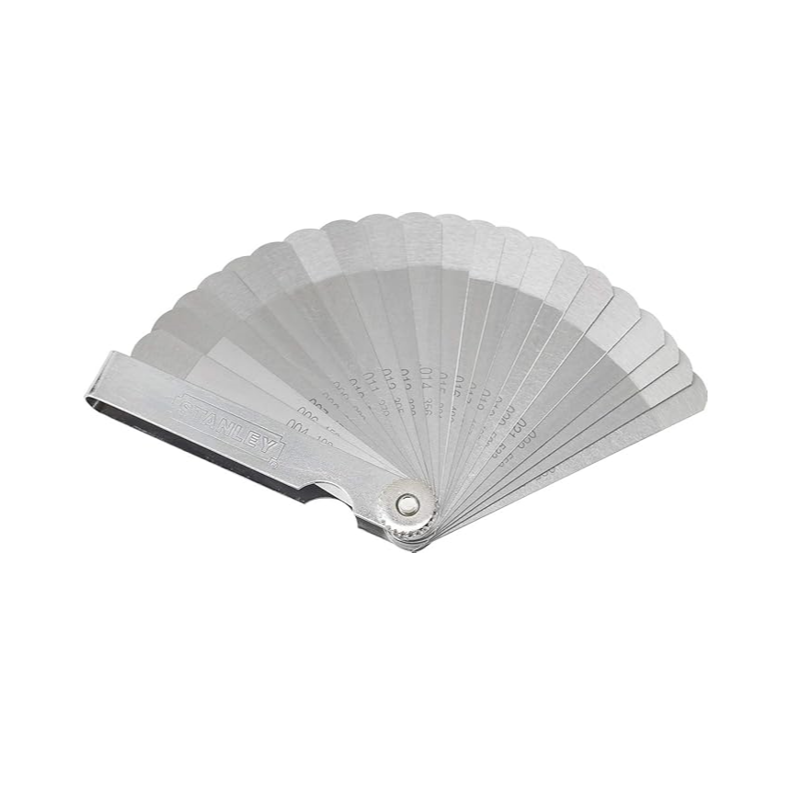

Stanley 36 Blade Metric / Imperial Feeler Gauge, 78-214

The Stanley 78-214 is a high-precision feeler or gap gauge set made for mechanics, machinists, and anyone working with fine tolerances. It includes 36 hardened steel and non-magnetic blades covering a wide range of thicknesses, ideal for checking and adjusting clearances in engines, machinery, and assemblies.

Features & Benefits

• 36 precision blades ranging from 0.051 mm to 0.9 mm (or equivalent in inches) for versatile gap measurement.

  • 0.002, 0.0025, 0.003, 0.004, 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.011, 0.012, 0.013, 0.014, 0.015, 0.016, 0.017, 0.018, 0.019, 0.020, 0.021, 0.022, 0.023, 0.024, 0.025, 0.026, 0.028, 0.030, 0.032 & 0.035 in Magnetic (0.051, 0.063, 0.076, 0.102, 0.127, 0.152, 0.178, 0.203, 0.229, 0.254, 0.279, 0.305, 0.330, 0.356, 0.381, 0.406, 0.432, 0.457, 0.483, 0.508, 0.530, 0.559, 0.580, 0.610, 0.635, 0.660, 0.711, 0.762, 0.813 & 0.889 mm) 0.006, 0.008, 0.010, 0.012, 0.014 & 0.016 in Non-magnetic (0.152, 0.203, 0.254, 0.305, 0.356 & 0.406 mm)

• Includes non-magnetic blades (typically brass or special alloy) for use in sensitive ignition or electrical applications.

• Each blade is clearly marked with its metric and imperial (SAE) dimension, making selection quick and accurate.

• A locking nut / thumbscrew mechanism holds blades firmly in place during measurement to prevent errors.

• The blades are hardened and tempered steel, providing durability, resistance to wear, and reliable longevity.

Typical Uses

• Checking and setting valve clearances in internal combustion engines

• Measuring spark plug gaps

• Adjusting ignition points or distributor contacts

• Verifying and fine-tuning machined parts clearances and fits

• Use in mechanical assembly, engine tuning, or precision maintenance
